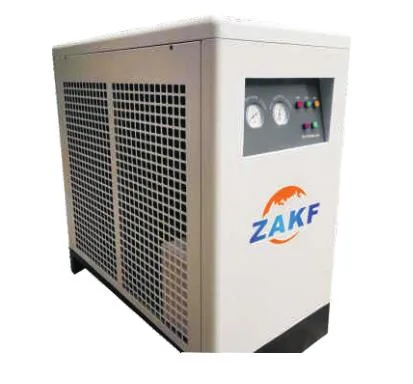

AC-100 Air Compressor Dryer System Refrigerated Air Dryer
Refrigerated Air Dryer
Air cooled air dryer ≤45dgree
High Temperature Dryer <80dgree
normal Temperature Dryer
220V 50HZ AIR DRYER
220V 60HZ AIR DRYER
design a new generation of "ZAKF" air compressor.
Improved quality assurance manual, advanced production process,
control management program files comprehensive, standardized, ensuring high quality brand name products "ZAKF",
stable and durable. High quality, intimate service get the praise from users all over the world.
Where you use?
Company Information
Company Profile-----Jiubei
Jiubei Industry Co., Ltd was established in 2000. We are a Hi-Techcompany .
specialized in research, development, manufacture and distribution of Air compressor spare parts.
Expect produceing air compressor replacement spare parts , we also supply the maintemance of air compressor .
In 2017, we built screw air compressor factory in pingxiang city, jiangxi province, it's the hometown of my boss.
and we get the support from goverment. our first brand is "ZAKF"
Our Services
FAQ
Q1: How can I get the quotation?
A: You can advise us the part number for checking, and we will quote to you soon by email.
Q2:What kind of ways for transportation ?
A:In general by air, sea or Express.(like DHL,Fedex,TNT,etc.)
Q3:How do I know the quality of productions?
A:We have a strict series of quality control, and we have perfect after service system, which can help you to solve the problem soon
Q4: If i want to change model,size,package,etc. How can I do?
A:You can contact us and we will revise according to your requirement
Q5:What is the terms of payment ?
A: L/C, T/T, Paypal(need 5% paypal fee) in advance.
Refrigerated Air Dryer
Air cooled air dryer ≤45dgree
High Temperature Dryer <80dgree
normal Temperature Dryer
220V 50HZ AIR DRYER
220V 60HZ AIR DRYER
| ZAKF refrigerator air dryer (normal temperature <45ºC) | ||||
| model | refrigerator | power | pressure | processing air flow (m3/min) |
| 10HP | R134 | 220V/50HZ | 8-10KG | 1.5 |
| 15HP | R134 | 220V/50HZ | 8-10KG | 2 |
| 20HP | R134 | 220V/50HZ | 8-10KG | 2.5 |
| 25HP | R134 | 220V/50HZ | 8-10KG | 3 |
| 30HP | R22 | 220V/50HZ | 8-10KG | 3.8 |
| 50HP | R22 | 220V/50HZ | 8-10KG | 6.5 |
| 75HP | R22 | 220V/50HZ | 8-10KG | 10.5 |
| 100HP | R22 | 380V/50HZ | 8-10KG | 13.5 |
| 30HP | R410 | 220V/50HZ | 8-10KG | 3.8 |
| 50HP | R410 | 220V/50HZ | 8-10KG | 6.5 |
| 75HP | R410 | 220V/50HZ | 8-10KG | 10.5 |
| 100HP | R410 | 380V/50HZ | 8-10KG | 13.5 |
| Model | Capacity M3/MIN | Voltage AC | Power KW | Current A | Refrigeration Type | Caliber of Tube (in and out) | |
| AC-10 | 1.5 | 1φ220V 50HZ | 0.37 | 3.90 | R22 R134a R407C R404A | 1"PT | |
| AC-20 | 2.5 | 0.37 | 3.90 | 1 1/2"PT | |||
| AC-30 | 3.8 | 0.74 | 4.00 | ||||
| AC-50 | 7.0 | 1.09 | 6.70 | ||||
| AC-75 | 10.0 | 1.58 | 8.80 | 2"PT | |||
| AC-100 | 13.0 | 3φ380V 50HZ | 1.94 | 10.70 | |||
| AC-150 | 18.0 | 2.57 | 7.50 | DN80 | |||
| AC-200 | 23 | 3.10 | 8.50 | ||||
| AC-250 | 28 | 4.40 | 12 | ||||
| AC-300 | 36 | 5.78 | 13 | DN100 | |||
| AC-400 | 45 | 6.51 | 16 | DN125 | |||
| AC-500 | 55 | 8.62 | 20 | ||||
Product Brand
ZAKF import advanced technology from Europe, through constant practice and improvement,design a new generation of "ZAKF" air compressor.
Improved quality assurance manual, advanced production process,
control management program files comprehensive, standardized, ensuring high quality brand name products "ZAKF",
stable and durable. High quality, intimate service get the praise from users all over the world.
Where you use?
Company Information
Company Profile-----Jiubei
Jiubei Industry Co., Ltd was established in 2000. We are a Hi-Techcompany .
specialized in research, development, manufacture and distribution of Air compressor spare parts.
Expect produceing air compressor replacement spare parts , we also supply the maintemance of air compressor .
In 2017, we built screw air compressor factory in pingxiang city, jiangxi province, it's the hometown of my boss.
and we get the support from goverment. our first brand is "ZAKF"
Our Services
| All the compressor parts Quality is guaranteed 1 year A full quotation as your required will be offered in 24 hours Service 24 hours a day ,6 days a week Accept your specific order and do everything we can do to meet your requirement |
FAQ
Q1: How can I get the quotation?
A: You can advise us the part number for checking, and we will quote to you soon by email.
Q2:What kind of ways for transportation ?
A:In general by air, sea or Express.(like DHL,Fedex,TNT,etc.)
Q3:How do I know the quality of productions?
A:We have a strict series of quality control, and we have perfect after service system, which can help you to solve the problem soon
Q4: If i want to change model,size,package,etc. How can I do?
A:You can contact us and we will revise according to your requirement
Q5:What is the terms of payment ?
A: L/C, T/T, Paypal(need 5% paypal fee) in advance.
