Large industrial air coolers and dehumidifiers

                                                   big industrial air cooler and dehumidifierApply to the co-piece glass, electronics assembly, biochemistry, battery factory, rubber tires, etc. Temper

Featured Products

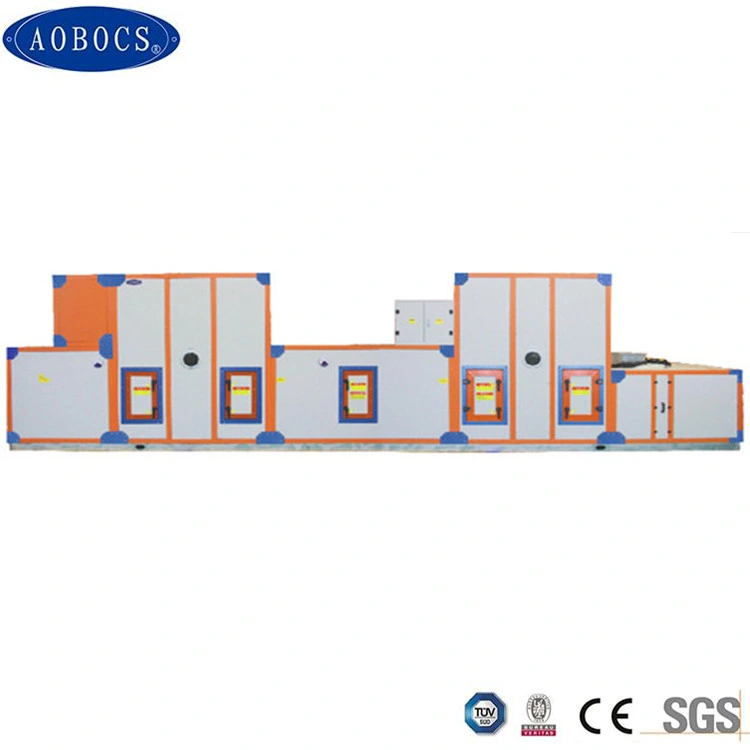

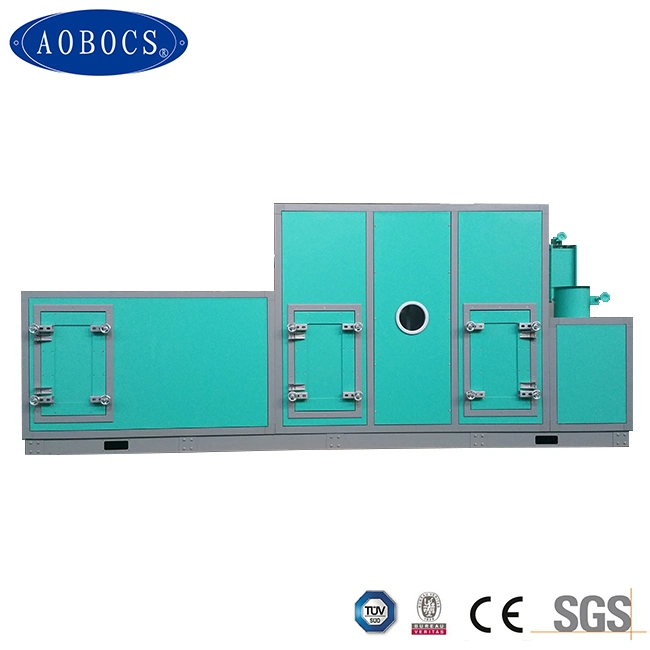

                                                   big industrial air cooler and dehumidifier
Apply to the co-piece glass, electronics assembly, biochemistry, battery factory, rubber tires, etc. Temperature: 15 ~ 25 °C. Relative humidity: 5 ~ 30% RH, dew point -23 °C d p. Air volume: 300 ~ 150000m3 / h.
Industrial sensor dehumidifier large capacity
Specification
TypeDehumidifying CapacityAir volumeRenewable Way*Renewable Way(electric)Cold loadDehumidifying AreaChiller
   Power
Kg/hm3/hKWKWKWm3KW
ZHS-2506.2~15300~1200-5.6~718~3530~505.9~11.5
ZHS-35012.5~19.8600~2400-11~2218~4350~805.9~14.2
ZHS-45017.2~31.41200~50004.5~715~2843~8680~15014.2~28.4
ZHS-55032~622400~80005~1322.5~3638~120150~30012.5~39.6
ZHS-77050~1305000~95005.543~8045~136300~45014.9~44.9
ZHS-95070~2207000~150007.568~11072~174450~75023.8~52.2
ZHS-1200150~42010000~2800013~18116~220132~356750~140043.6~106.8
ZHS-1500250~78015000~2500022~27-183~5661400~215054.9~169.8
ZHS-1900320~96020000~7500028~36-290~9012150~350087~270.3
ZHS-2400380~130030000~11500042~53-495~13973500~5750148.5~419.1
ZHS-3000720~210045000~15000075~88-620~18205720~7500186~546
Selection method: big industrial air cooler and dehumidifier
1.Temperature and humidity requirements.
2.Length, width and height.
3.Air flow, ventilation rate, supply air temperature.
4.Purification level.
5.The number of staff.
6.Whether cold water and steam available.


Big Industrial Air Cooler and Dehumidifier
Big Industrial Air Cooler and Dehumidifier
Big Industrial Air Cooler and Dehumidifier
Big Industrial Air Cooler and Dehumidifier
Big Industrial Air Cooler and Dehumidifier
Big Industrial Air Cooler and Dehumidifier
Big Industrial Air Cooler and Dehumidifier
Big Industrial Air Cooler and Dehumidifier
Big Industrial Air Cooler and Dehumidifier
Big Industrial Air Cooler and Dehumidifier
