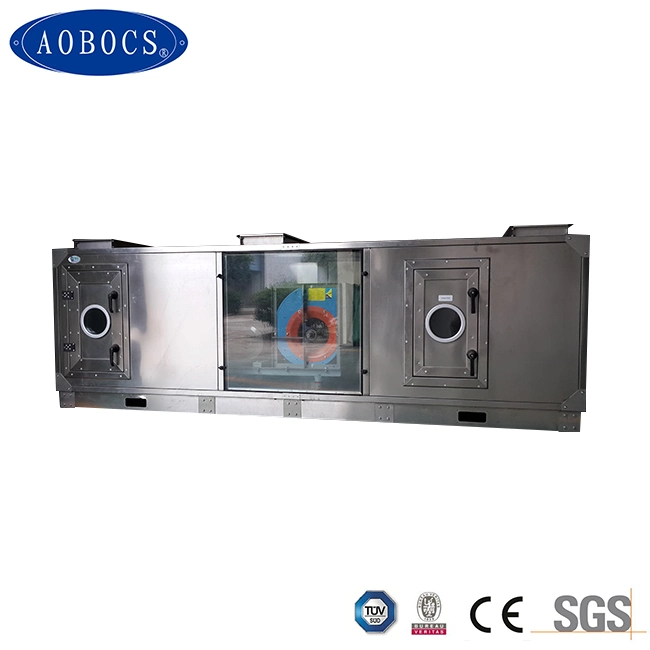

Desiccant Rotor Dehumidifier Clean Room Air Handling Unit

                                              desiccant rotor dehumidifier clean room air handling unit biochemistry,food, battery factory, rubber tires, etc.Temperature: 15 ~ 25 °C. Relative humidity: 5 ~

Featured Products

                                              desiccant rotor dehumidifier clean room air handling unit
biochemistry,food, battery factory, rubber tires, etc.
Temperature: 15 ~ 25 °C. Relative humidity: 5 ~ 30% RH, dew point -23 °C d p.
Air volume: 300 ~ 150000m3 / h.
Industrial dehumidifier large capacity
Specification
TypeDehumidifying CapacityAir volumeReact. Way*React. Way(electric)Cold loadDehumidifying AreaChiller
   Power
Kg/hm3/hKWKWKWm3KW
ZHS-2506.2~15300~1200-5.6~718~3530~505.9~11.5
ZHS-35012.5~19.8600~2400-11~2218~4350~805.9~14.2
ZHS-45017.2~31.41200~50004.5~715~2843~8680~15014.2~28.4
ZHS-55032~622400~80005~1322.5~3638~120150~30012.5~39.6
ZHS-77050~1305000~95005.543~8045~136300~45014.9~44.9
ZHS-95070~2207000~150007.568~11072~174450~75023.8~52.2
ZHS-1200150~42010000~2800013~18116~220132~356750~140043.6~106.8
ZHS-1500250~78015000~2500022~27-183~5661400~215054.9~169.8
ZHS-1900320~96020000~7500028~36-290~9012150~350087~270.3
ZHS-2400380~130030000~11500042~53-495~13973500~5750148.5~419.1
ZHS-3000720~210045000~15000075~88-620~18205720~7500186~546
Selection method: desiccant wheel dehumidifier medical air handling unit
1.Temperature and humidity requirements.
2.Length, width and height.
3.Air volume, ventilation times, supply air temperature.
4.Clean class.
5.The number of staff.
6.Whether cold water and steam available.
