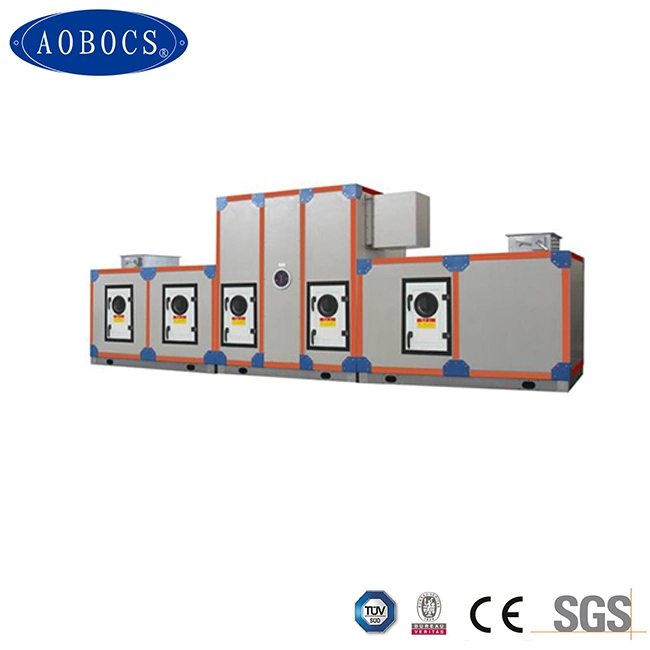

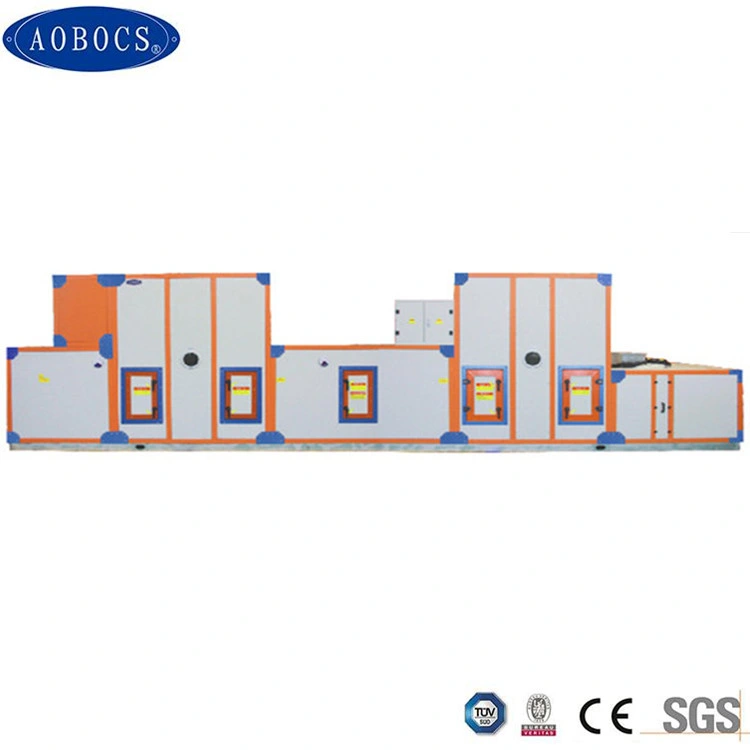

Low Temperature And Low Humidity Food Industry Dehumidifier

Low temperature and low humidity food industry dehumidifier

Low Temperature Low Humidity food industry dehumidifierApplicable to the co-piece glass, electronics assembly, biochemistry, food, battery factory, medical equipment,rubber tires, etc.Temperature: 15 ~ 25 °C. Relative humidity: 5 ~ 30% RH, dew

Low Temperature Low Humidity food industry dehumidifier

Applicable to the co-piece glass, electronics assembly, biochemistry, food, battery factory, medical equipment,rubber tires, etc.
Temperature: 15 ~ 25 °C. Relative humidity: 5 ~ 30% RH, dew point -23 °C d p.
Air volume: 300 ~ 150000m3 / h.

Industrial dehumidifier large capacity

Specification

Type	Dehumidifying Capacity	Air volume	React. Way*	React. Way(electric)	Cold load	Dehumidifying Area	Chiller Power
Type	Kg/h	m3/h	KW	KW	KW	m3	KW
ZHS-250	6.2~15	300~1200	-	5.6~7	18~35	30~50	5.9~11.5
ZHS-350	12.5~19.8	600~2400	-	11~22	18~43	50~80	5.9~14.2
ZHS-450	17.2~31.4	1200~5000	4.5~7	15~28	43~86	80~150	14.2~28.4
ZHS-550	32~62	2400~8000	5~13	22.5~36	38~120	150~300	12.5~39.6
ZHS-770	50~130	5000~9500	5.5	43~80	45~136	300~450	14.9~44.9
ZHS-950	70~220	7000~15000	7.5	68~110	72~174	450~750	23.8~52.2
ZHS-1200	150~420	10000~28000	13~18	116~220	132~356	750~1400	43.6~106.8
ZHS-1500	250~780	15000~25000	22~27	-	183~566	1400~2150	54.9~169.8
ZHS-1900	320~960	20000~75000	28~36	-	290~901	2150~3500	87~270.3
ZHS-2400	380~1300	30000~115000	42~53	-	495~1397	3500~5750	148.5~419.1
ZHS-3000	720~2100	45000~150000	75~88	-	620~1820	5720~7500	186~546

Selection method: low temperature low humidity desiccant dehumidifier
1.Temperature and humidity requirements.
2.Length, width and height.
3.Air volume, ventilation times, supply air temperature.
4.Clean class.
5.The number of staff.
6.Whether cold water and steam available.
