air handling unit industrial type desiccant dehumidifier ItemDehumidifyingcapacity ProcessingcapacityRecoverymethod*Recoverymethod(electric)Rotary speedof rotarywheel Dimension WeightKg/hm3/hKWKWN(rph)(L*W*H)KgZHS-2502.5~4300~600-5.613~251200*650*78080ZHS-3504~8600~1200-11~1813~251200*700*800120ZHS-4508~12120

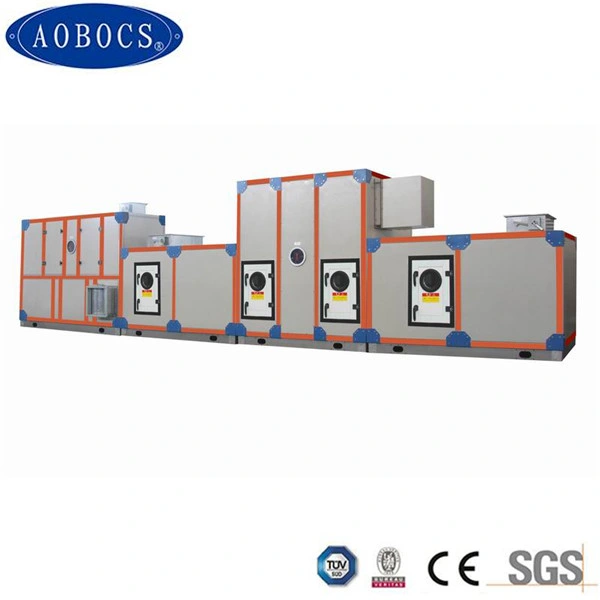

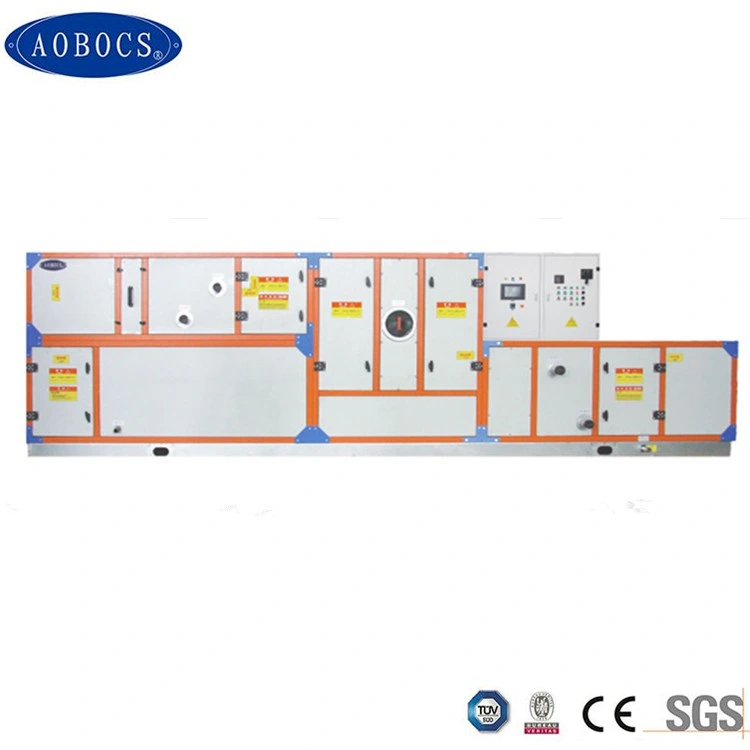

air handling unit industrial type desiccant dehumidifier
Item
Dehumidifying capacity
Processing capacity
Recovery method*
Recovery method (electric)
Rotary speed of rotary wheel
Dimension
Weight
Kg/h
m3/h
KW
KW
N(rph)
(L*W*H)
Kg
ZHS-250
2.5~4
300~600
-
5.6
13~25
1200*650*780
80
ZHS-350
4~8
600~1200
-
11~18
13~25
1200*700*800
120
ZHS-450
8~12
1200~2400
2.3~3.5
15~23
13~25
1300*750*850
180
ZHS-550
12~20
2400~4800
3.5~5.5
22.5~32
10~23
1400*750*900
200
ZHS-770
20~32
4800~7000
2.5
43~53
10~23
1600*1000*1100
350
ZHS-950
32~60
6000~12000
3.2~5.7
68~90
10~23
1600*1200*1300
380
ZHS-1200
60~95
10000~20000
5.8~7.5
116~185
15~28
1600*1400*1600
420
ZHS-1500
95~150
15000~25000
8~11.5
-
15~28
1800*1700*2000
550
ZHS-1900
150~230
20000~35000
12~15
-
15~28
2000*2200*2500
700
ZHS-2400
230~310
30000~45000
15~20
-
15~28
2200*2800*3300
1200
ZHS-3000
310~500
45000~70000
22~28
-
15~28
2500*3500*5200
1800
Note:industrial use dehumidifier
1.Wind speed of rotary wheel surface:design to 2~5.5/S. 2.The processing air of rated dehumidifying capacity according to the test value of temperature 27°C,relative humidity 60%,recovery temperature 120~140 °C. 3.The recovery method* can select and use steam,fuel oil,natural gas,liquefied gas
