Plate dryer introduction

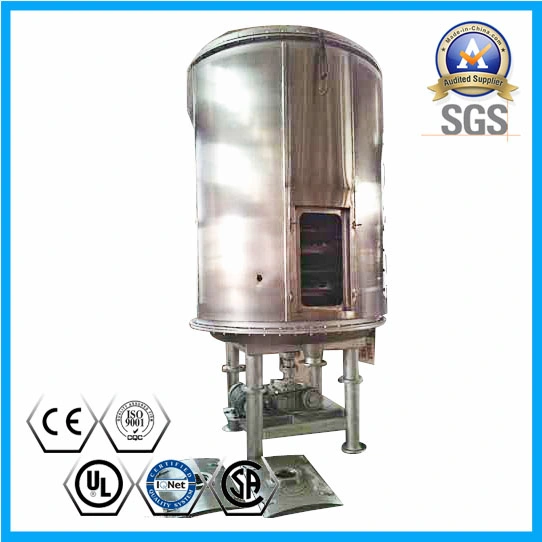

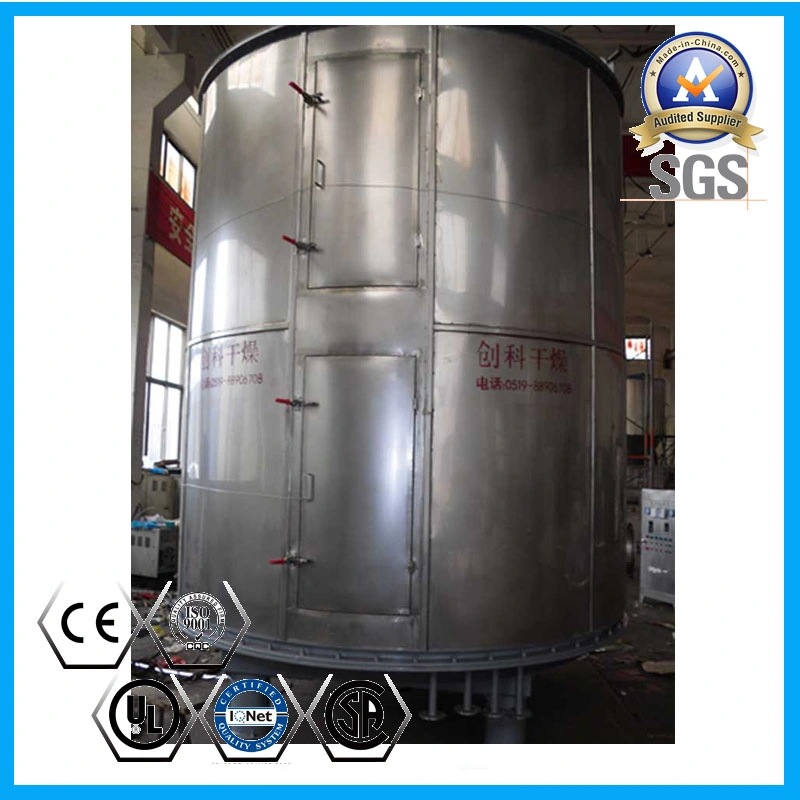

PLG series continuous plate dryer is a kind of high efficiency conducting and continuous drying equipment. Its unique structure and operating principle provide advantages of high heat efficiency , low energy consumption, less occupying area, simple configuration, easy operation and control as well as good operating environment etc. It is widely used in drying process in the flelds of chemical, pharmaceuticals, agricultural chemicals, foodstuff, fodder,process of agricultural and by-products etc., and is well received by various industries. Now there are three big categories, normal pressure, c losed and vacuum styles and four s pecifications of 1200, 1500, 2200 and 2500; and three kinds of constructions A (carbon steel), B (stainless steel for contact parts) and C (on the basis of B to add stainless steel for s team pipes, main shaft and support, and stainless steel linings for cylinder body and top cover).With a drying area of 4 to 180 square meters, now we have hundreds of models of s eries products and various kinds of auxiliary devices available to meet requirements of various products
Continuous Rotary Drying Tray/ Rotary Disc Dryer/ Plate Drying for Starch, Chemical, Fertilizer Powder, Pellets
Continuous Rotary Drying Tray/ Rotary Disc Dryer/ Plate Drying for Starch, Chemical, Fertilizer Powder, PelletsWorking Principle
Wet materials are fed continuously to the top drying layer in the dryer . They will be turned and stirred continuously by harrows when the harrows arm rotates, the material flows through the surface of the drying plate along the exponential helical line. On the small drying plate the material will be moved to its exterior edge and drop down to the exterior edge of the large drying plate underneath, and will then be moved inward and drop down from its central hole to the small drying plate on the next layer . Both small and large drying plates are arranged a lternately so a s materials can go through the whole dryer continuously. The heating media, which could be saturated steam, hot water or thermal oil will be led into hollow drying plates from one end to other end of the dryer. The dried product will drop from the last layer of the drying plate to the bottom layer of the smell body, and will be moved by harrows to the discharge port. The moisture exhausts from materials and will be removed from the moist discharge port on the top cover, or sucked out by the vacuum pump on the top cover for vacuum-type plate dryer. The dried product discharged from the bottom layer can be packed directly. The drying capability can be raised up if equipped with supplementary devices such as finned heater, condenser for solvent recovery , bag dust filter, return and mix mechanism for dried materials and suction fan etc. solvent in those paste state and heat sensitive materials can be easily recovered, and thermal decomposition and reaction can be also carried out.

Drying plate
(1). Designing pressure: general is 0.4MPa, Max. can reach 1.6 Mpa.
(2).W ork pressure: general is less then 0.4Mpa, and Max. can reach 1.6 Mpa.
(3).Heating medium: steam, hot water , oil. When the drying plates' temperature is 100, hot water can be used; when 100 -150, it will be saturated water steam<0.4Mpa or steam-gas, and when 150 -320, it will be oil; when >320 it will
be heated by electric, oil of fused salt.

specdiameter mmhigh mmarea of dry m2power Kw
1200/4185027183.31
1200/631384.9
1200/835586.61.5
1200/1039788.2
1200/1243989.92.2
1500/6210030228.0
1500/8344210.7
1500/10386213.4
1500/12428216.13.0
1500/14470218.8
1500/16512221.5
2200/62900331918.5
2200/8373924.6
2200/10415930.84.0
2200/12457936.9
2200/14499943.15.5
2200/16541919.3
2200/18583955.47.5
2200/20625961.6
2200/22667967.711
2200/24709973.9
2200/26751980.0



specdiamter mmhigh mmarea of dry m2power Kw
2500/63150331926.34
2500/8373935
2500/10415943.85.5
2500/12457952.5
2500/14499961.37.5
2500/16541970
2500/18583978.811
2500/20625987.5
2500/22667996.3
2500/24709910513
2500/267519113.8
3000/8380040504811
3000/10465060
3000/12525072
3000/14585084
3000/16645096
3000/18705010813
3000/207650120
3000/228250132
3000/248850144
3000/26945015615
3000/2810050168
