Humidity control in the plastics industry using cassette-type desiccant rotors to reduce energy consumption

PSS-S Refrigeration Energy-Saving Desiccant Rotor     PSS-S is a new generation of desiccant rotor with higher performance and cost-effective.     PSS-S dehumidification performance is better than regular PSS under the same condition of airflow, temperature and moisture of process air, regeneration

Featured Products

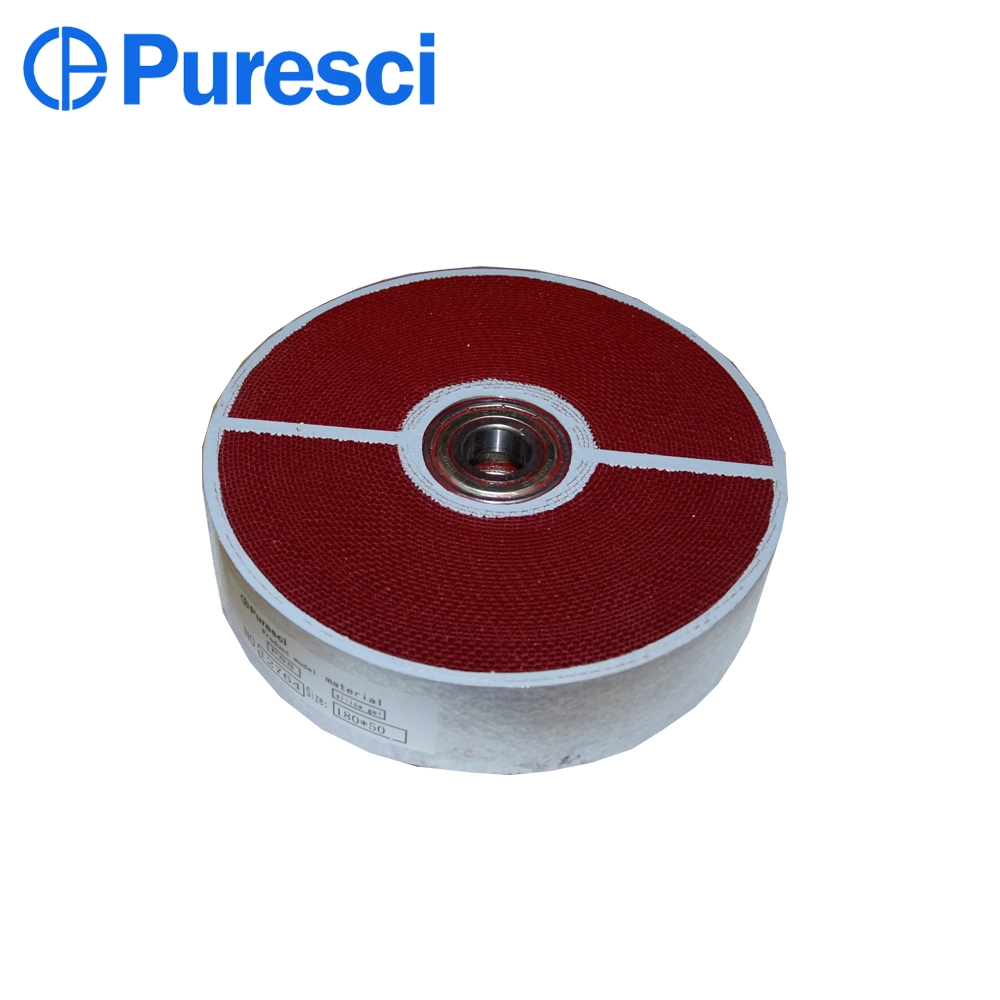

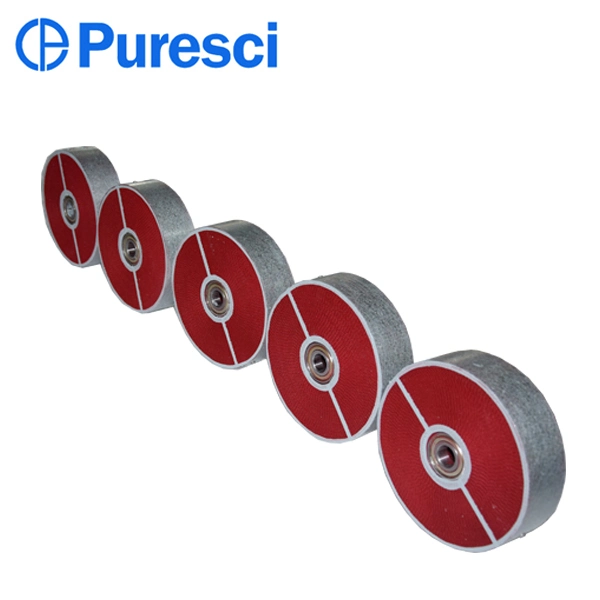

PSS-S Refrigeration Energy-Saving Desiccant Rotor

     PSS-S is a new generation of desiccant rotor with higher performance and cost-effective.

     PSS-S dehumidification performance is better than regular PSS under the same condition of airflow, temperature and moisture of process air, regeneration temperature and humidity ratio of regeneration air.

Reducing Energy Consumption Desiccant Rotor with Cassette Applied to Plastic Industry Humidity Control



Features

1.Enhance Adsorption Performance
A smaller size of desiccant rotor is available .

Compared with normal silica gel desiccant rotor on the market, Under the same working conditions, because PSS-S has a very high performance dehumidification capacity, it is a smaller size than regular PSS when selecting the desiccant rotor.

Reducing Energy Consumption Desiccant Rotor with Cassette Applied to Plastic Industry Humidity Control


 2. Energy-saving
Save 25% ~ 40% of the total operating cost of system.

Reducing Energy Consumption Desiccant Rotor with Cassette Applied to Plastic Industry Humidity Control


3. Wide Range of Application
(1) Normal humidity 10% ~ 40% application, Regeneration temperature 120ºC ~ 180ºC
(2) Low dew point application,can reach to -50ºC ~ -75ºC


4. Unique Composite Materials
All materials are developed independently by Puresci Material R&D Lab for several years.

5.Water Washable
The desiccant rotor can be washed by water.

6. Professional Surface Treatment
Adopt international standard environmental paint with water-resistant, high temperature resistance, strong weather resistance, anti-corrosion, no odor and high hardness.



Products Structure & Dimensions

Besides standard dimensions (Diameter and Thickness), non-standard rotors can be customized according to customers' requiremens, such as 50mm, 65mm, 100mm and 150mm.
Reducing Energy Consumption Desiccant Rotor with Cassette Applied to Plastic Industry Humidity Control





                                                                   Rotor Size
Diameter (mm)Thickness (mm)Bearing/ Inner holeShaft Diameter(mm)Delivered Konck-down
180-55050,100,150,200, 300 4006204/2050No
600-850200,300,4006204/2070No
965-1070200,300,4006204/20100No
1200-1650200,300,4006206/30150Can
1730-4250200,300,4006206/30200Yes
Note: The above could be customized according to customers' requirement.

Accessories - Cassette, Flange, etc

Cassette's Material
(1) Cold drawn square tube, high temperature paint
(2) Stainless steel square tube

Reducing Energy Consumption Desiccant Rotor with Cassette Applied to Plastic Industry Humidity Control

Gear Motor
Applicable environment is -10ºC ~ 40ºC), Motor can be customized.

If the rotor is equipped with flange , flange is
(1) Hot dip galvanized angle steel flange: 30*30mm or 40*40mm
(2) Stainless steel flange: 30*30mm or 40*40mm


Reducing Energy Consumption Desiccant Rotor with Cassette Applied to Plastic Industry Humidity Control


Product  Packing & Shipping

Reducing Energy Consumption Desiccant Rotor with Cassette Applied to Plastic Industry Humidity Control

Shipping:
Via containers by Sea or Air,
Or via UPS/ DHL/ FEDEX, Tracking will sent to you via email after samples or goods are shipped out.



Application

Puresci desiccant rotor are widely used in different industries:
Pharmaceutical manufacturing;
Food producing,processing and storing;
Lithium battery and electronic producing;
Ship manufacturing and bridge corrosion resistant;
Plastic and chemical products producing;
Storage and maintenance for military;

Reducing Energy Consumption Desiccant Rotor with Cassette Applied to Plastic Industry Humidity Control



Our Service

1. Pre-sale Service
(1) Technical service consultation.
(2) PC and mobile phone selection software.
(3) Support service - product test, system design, R&D technical support.

2. Medium-sales Service
Precision production facilities and consummate production technology is a guarantee of high quality.

3. After-sales Service
Timely delivery, quickly help customers solve technical problem and optimize equipment performance, ensure terminal customers to run dehumidification equipment efficiency.


Reducing Energy Consumption Desiccant Rotor with Cassette Applied to Plastic Industry Humidity Control

FAQ

Q1: What's your temrs of trade?
EXW, FOB, CFR, CIF, DDU, DDP.

Q2: What's your terms of payment?
100% advance pament before delivery by T/T or L/C.

Q3: How about your delivery time?
It is 7 days normally. The specific delivery time depends on the items and the quantity of your order.

Q4: What's your terms of packing?
The package of desiccant rotor is polyfoam and wooden case. It will be very safe for shipping.


Q5: Can you produce according to the samples?
Generally, we offer customized services.

Q6: What's your sample policy?
We can supply the sample if we have ready parts in stock, but the customers have to pay sample cost and courier cost.
