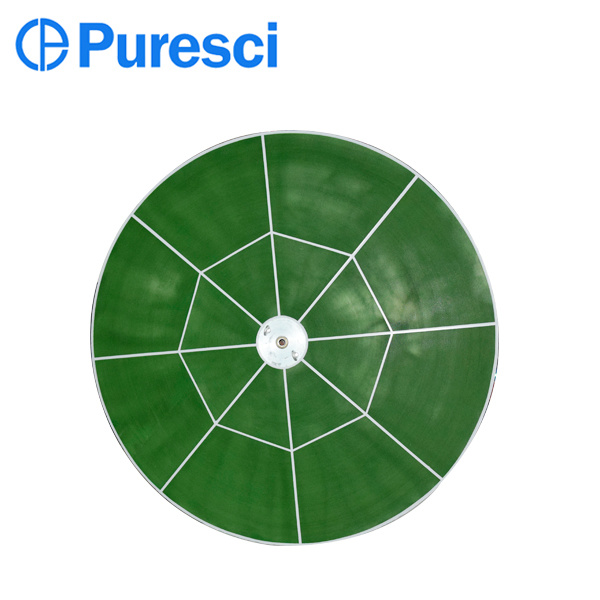

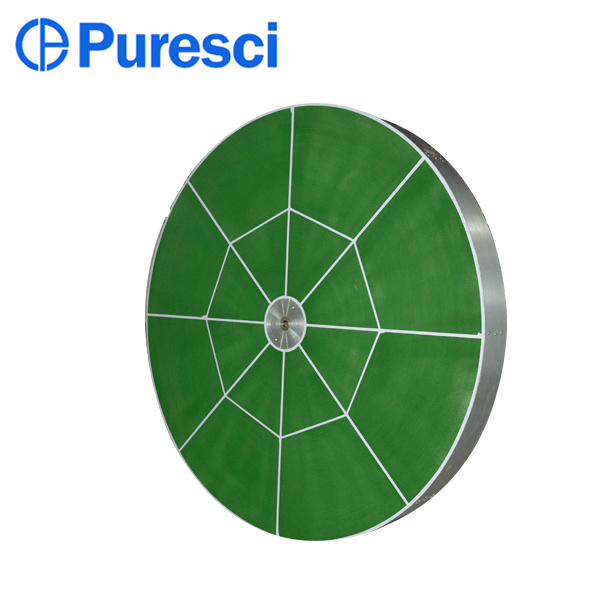

PSL-B Low Regeneration Temperature Desiccant Rotor

PSL-B desiccant rotor regeneration temperature 40 ºC  ~ 60ºC, is suitable for low temperature regeneration of ordinary humidity operation (Humidity 20% ~ 40%)

 Desiccant rotor partition 1 : 1.

Air Humidity Control Ce&RoHS Certificated Desiccant Wheel Applied to Dehumidifier


Features

1. Low Regeneration Temperature
Regeneration temperature 40ºC ~ 60ºC

2. Waste Heating Source Recircle, 100% Regeneration Energy Saving
Take full advantage of low-grade energy sources such as condensation waste heat, solar energy and industrial waste heat as desorption.

3. Unique Composite Materials
All materials are developed independently by Puresci Material R&D Lab for several years.

4. Water Washable
The desiccant rotor can be washed by water.

5. High Praise

Air Humidity Control Ce&RoHS Certificated Desiccant Wheel Applied to Dehumidifier
Air Humidity Control Ce&RoHS Certificated Desiccant Wheel Applied to Dehumidifier



Products Structure & Dimensions

Besides standard dimensions (Diameter and Thickness), non-standard rotors can be customized according to customers' requiremens, such as 50mm, 65mm, 100mm and 150mm.

Air Humidity Control Ce&RoHS Certificated Desiccant Wheel Applied to Dehumidifier

Rotor Size
Diameter (mm)Thickness (mm)Bearing/ Inner holeShaft Diameter(mm) Delivered Knock-down
180-55050,100,150, 200, 300, 4006204/205070No
600-850200,300,4006204/2070No
965-1070200,300,4006204/20100No
1200-1650200,300,4006206/30150Can
1730-4250200,300,4006206/30240Yes
Note: The above could be customized according to customers' requirement.

Accessories - Cassette, Flange, etc

Cassette's material
(1) Cold drawn square tube, high temperature paint
(2) Stainless steel square tube
Air Humidity Control Ce&RoHS Certificated Desiccant Wheel Applied to Dehumidifier


Gear motor
Applicable environment is -10ºC ~ 40ºC, Motor can be customized.

If the rotor is equipped with flange , flange is
(1) Hot dip galvanized angle steel flange: 30*30mm or 40*40mm
(2) Stainless steel flange: 30*30mm or 40*40mm

Air Humidity Control Ce&RoHS Certificated Desiccant Wheel Applied to Dehumidifier

Product  Packing & Shipping

Air Humidity Control Ce&RoHS Certificated Desiccant Wheel Applied to Dehumidifier

Shipping:
Via containers by Sea or Air,
Or via UPS/ DHL/ FEDEX, Tracking will sent to you via email after samples or goods are shipped out.


Application

Puresci desiccant rotor are widely used in different industries:
Pharmaceutical manufacturing;
Food producing,processing and storing;
Lithium battery and electronic producing;
Ship manufacturing and bridge corrosion resistant;
Plastic and chemical products producing;
Storage and maintenance for military;

Air Humidity Control Ce&RoHS Certificated Desiccant Wheel Applied to Dehumidifier



Our Service

1. Pre-sale Service
(1) Technical service consultation.
(2) PC and mobile phone selection software.
(3) Support service - product test, system design, R&D technical support.

2. Medium-sales Service
Precision production facilities and consummate production technology is a guarantee of high quality.

3. After-sales Service
Timely delivery, quickly help customers solve technical problem and optimize equipment performance, ensure terminal customers to run dehumidification equipment efficiency.

Air Humidity Control Ce&RoHS Certificated Desiccant Wheel Applied to Dehumidifier


FAQ

Q1: What's your temrs of trade?
EXW, FOB, CFR, CIF, DDU, DDP.

Q2: What's your terms of payment?
100% advance pament before delivery by T/T or L/C.

Q3: How about your delivery time?
 It is 7 days normally. The specific delivery time depends on the items and the quantity of your order.

Q4: What's your terms of packing?
The package of desiccant rotor is polyfoam and wooden case. It will be very safe for shipping.

Q5: Can you produce according to the samples?
Generally, we offer customized services.

Q6: What's your sample policy?
We can supply the sample if we have ready parts in stock, but the customers have to pay sample cost and courier cost.
