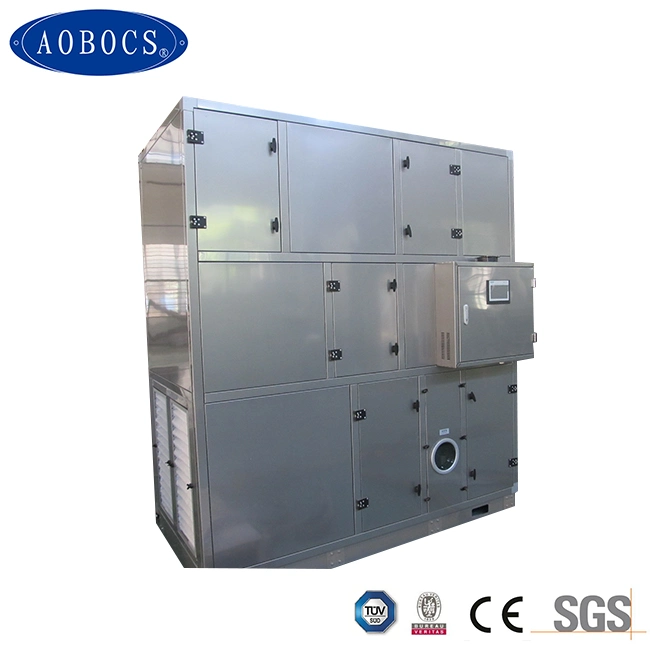

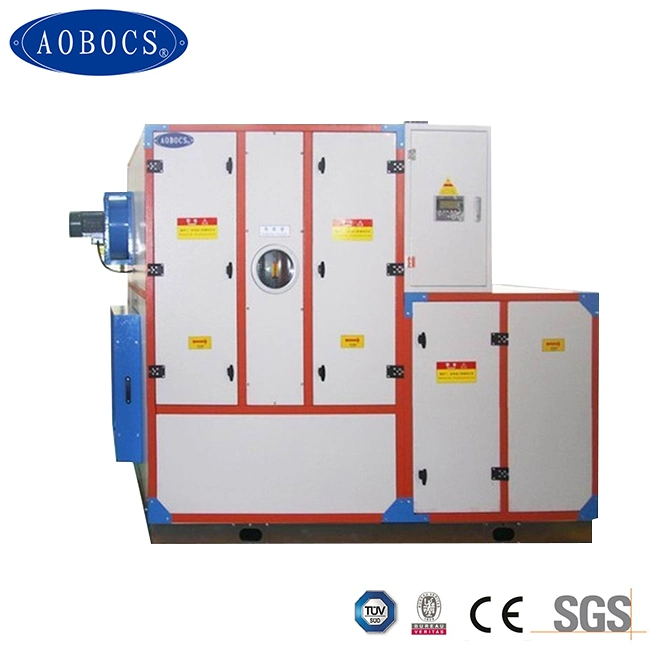

low dew point purify big industrial dehumidifier
Apply to the co-piece glass, electronics assembly, biochemistry, food, battery factory, medical equipment,rubber tires, etc.
Temperature: 15 ~ 25 °C. Relative humidity: 5 ~ 30% RH, dew point -23 °C d p.
Air volume: 300 ~ 150000m3 / h. |
| Industrial dehumidifier large capacity |
| Specification |
| Type | Dehumidifying Capacity | Air volume | React. Way* | React. Way(electric) | Cold load | Dehumidifying Area | Chiller
Power | | Kg/h | m3/h | KW | KW | KW | m3 | KW | | ZHS-250 | 6.2~15 | 300~1200 | - | 5.6~7 | 18~35 | 30~50 | 5.9~11.5 | | ZHS-350 | 12.5~19.8 | 600~2400 | - | 11~22 | 18~43 | 50~80 | 5.9~14.2 | | ZHS-450 | 17.2~31.4 | 1200~5000 | 4.5~7 | 15~28 | 43~86 | 80~150 | 14.2~28.4 | | ZHS-550 | 32~62 | 2400~8000 | 5~13 | 22.5~36 | 38~120 | 150~300 | 12.5~39.6 | | ZHS-770 | 50~130 | 5000~9500 | 5.5 | 43~80 | 45~136 | 300~450 | 14.9~44.9 | | ZHS-950 | 70~220 | 7000~15000 | 7.5 | 68~110 | 72~174 | 450~750 | 23.8~52.2 | | ZHS-1200 | 150~420 | 10000~28000 | 13~18 | 116~220 | 132~356 | 750~1400 | 43.6~106.8 | | ZHS-1500 | 250~780 | 15000~25000 | 22~27 | - | 183~566 | 1400~2150 | 54.9~169.8 | | ZHS-1900 | 320~960 | 20000~75000 | 28~36 | - | 290~901 | 2150~3500 | 87~270.3 | | ZHS-2400 | 380~1300 | 30000~115000 | 42~53 | - | 495~1397 | 3500~5750 | 148.5~419.1 | | ZHS-3000 | 720~2100 | 45000~150000 | 75~88 | - | 620~1820 | 5720~7500 | 186~546 |
|
Selection method:low dew point purify big industrial dehumidifier
1.Temperature and humidity requirements.
2.Length, width and height.
3.Air volume, ventilation times, supply air temperature.
4.Clean class.
5.The number of staff.
6.Whether cold water and steam available. |
